Model No. |
Power |

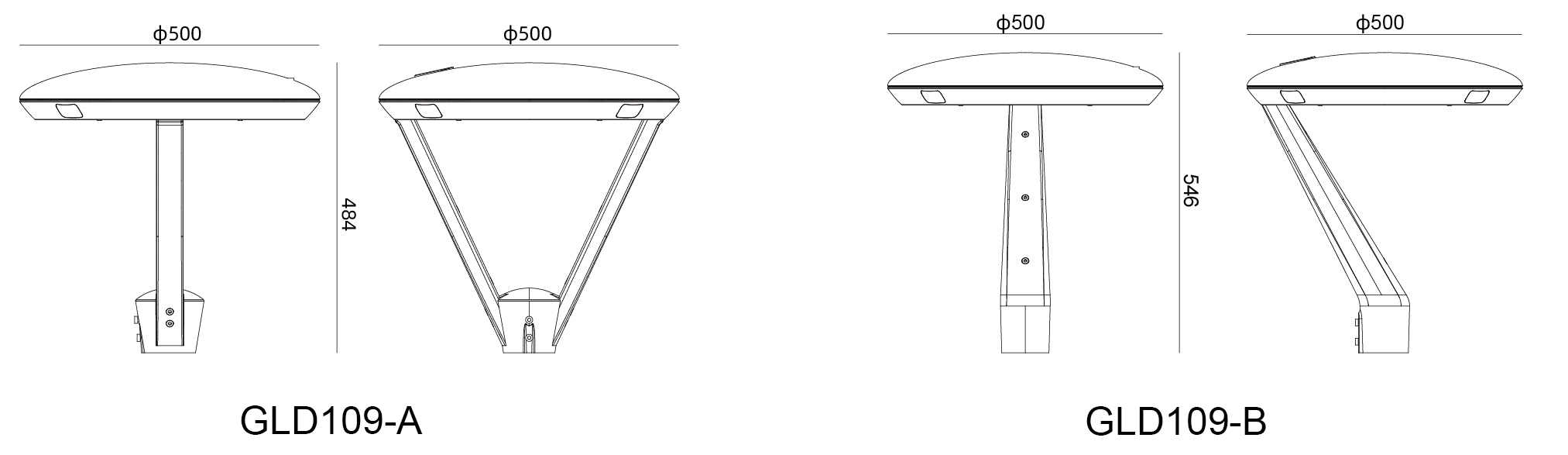

L*W*H(mm) |
IP Level |
Protection Level |
|
GLD-GL109A |
40W-120W |
500x500x484 |
IP66 |
IK09 |
|

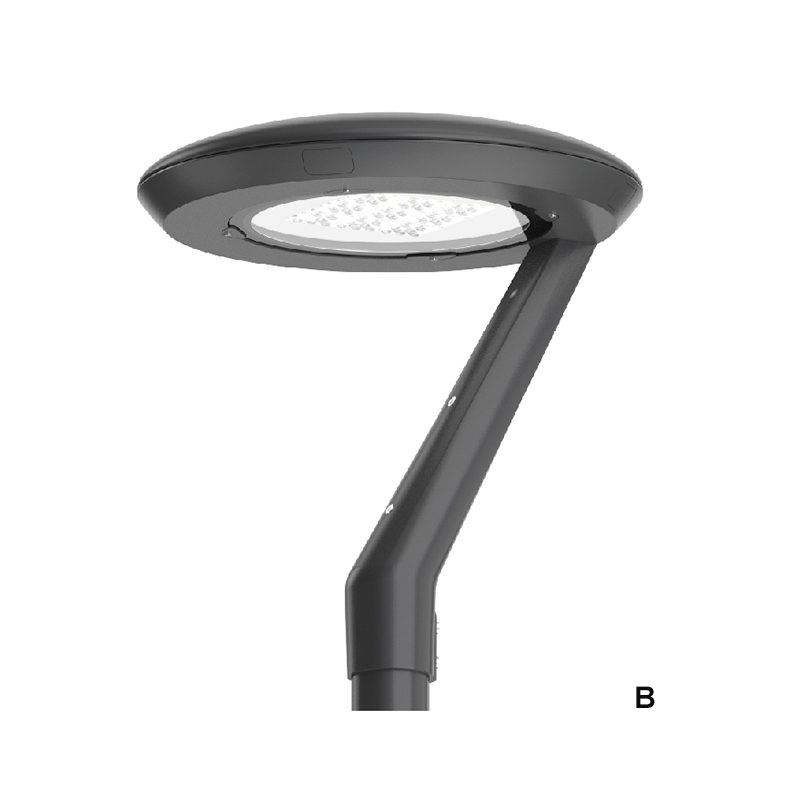

GLD-GL109B |
40W-120W |
500x500x484 |
IP66 |
IK09 |
|

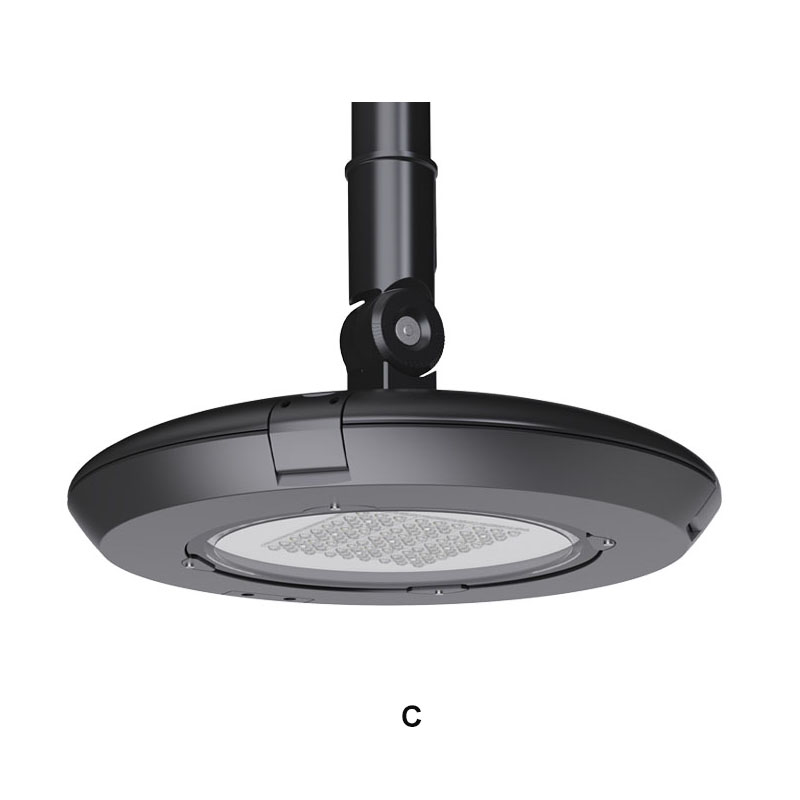

GLD-GL109C |
40W-120W |
500x500x484 |
IP66 |
IK09 |
|

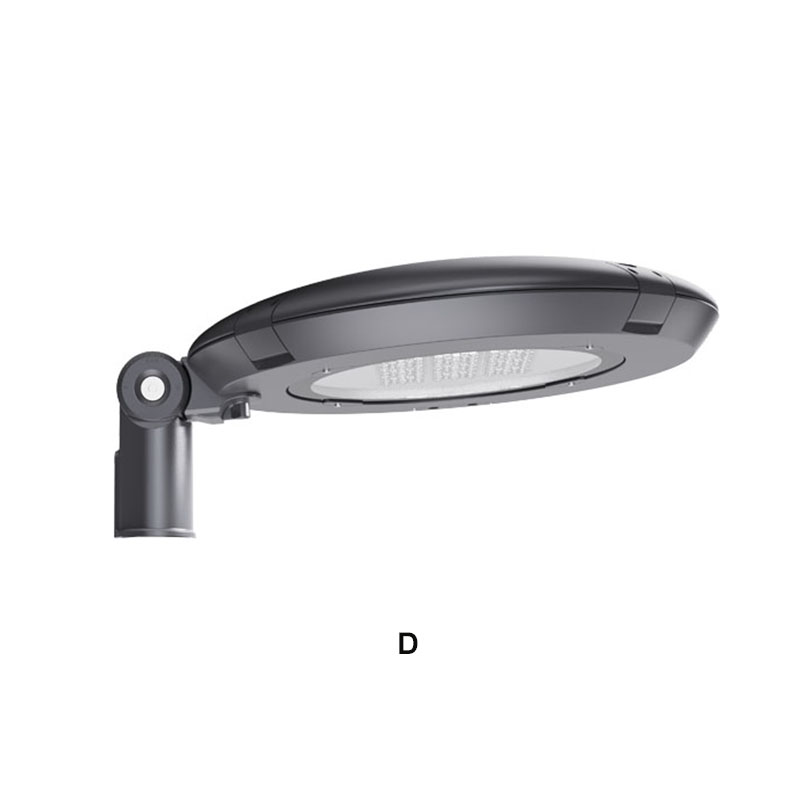

GLD-GL109D |
40W-120W |
500x500x484 |
IP66 |
IK09 |
|

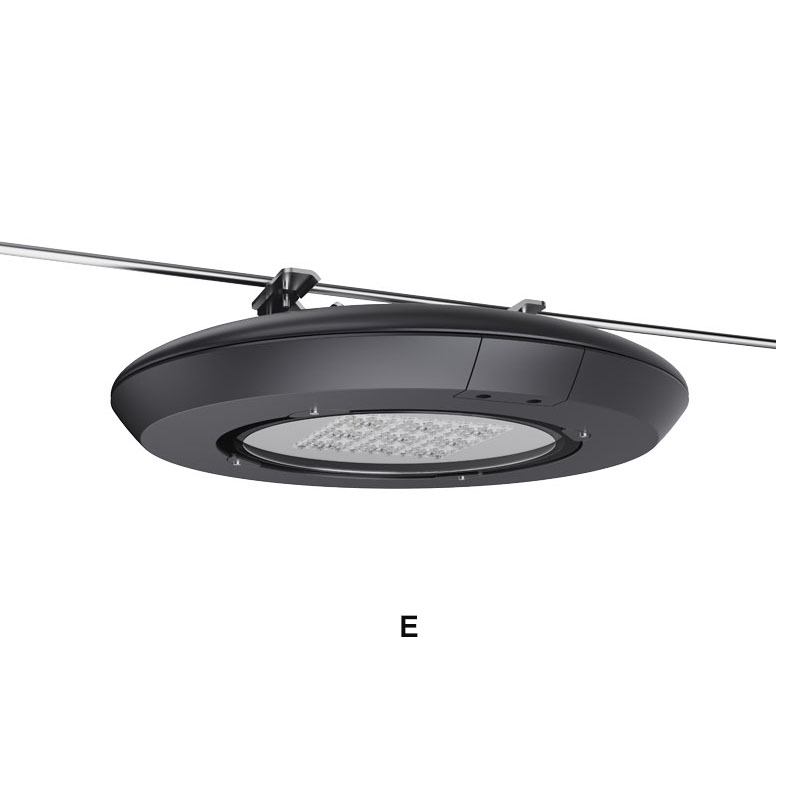

GLD-GL109E |
40W-120W |
500x500x484 |
IP66 |
IK09 |
|

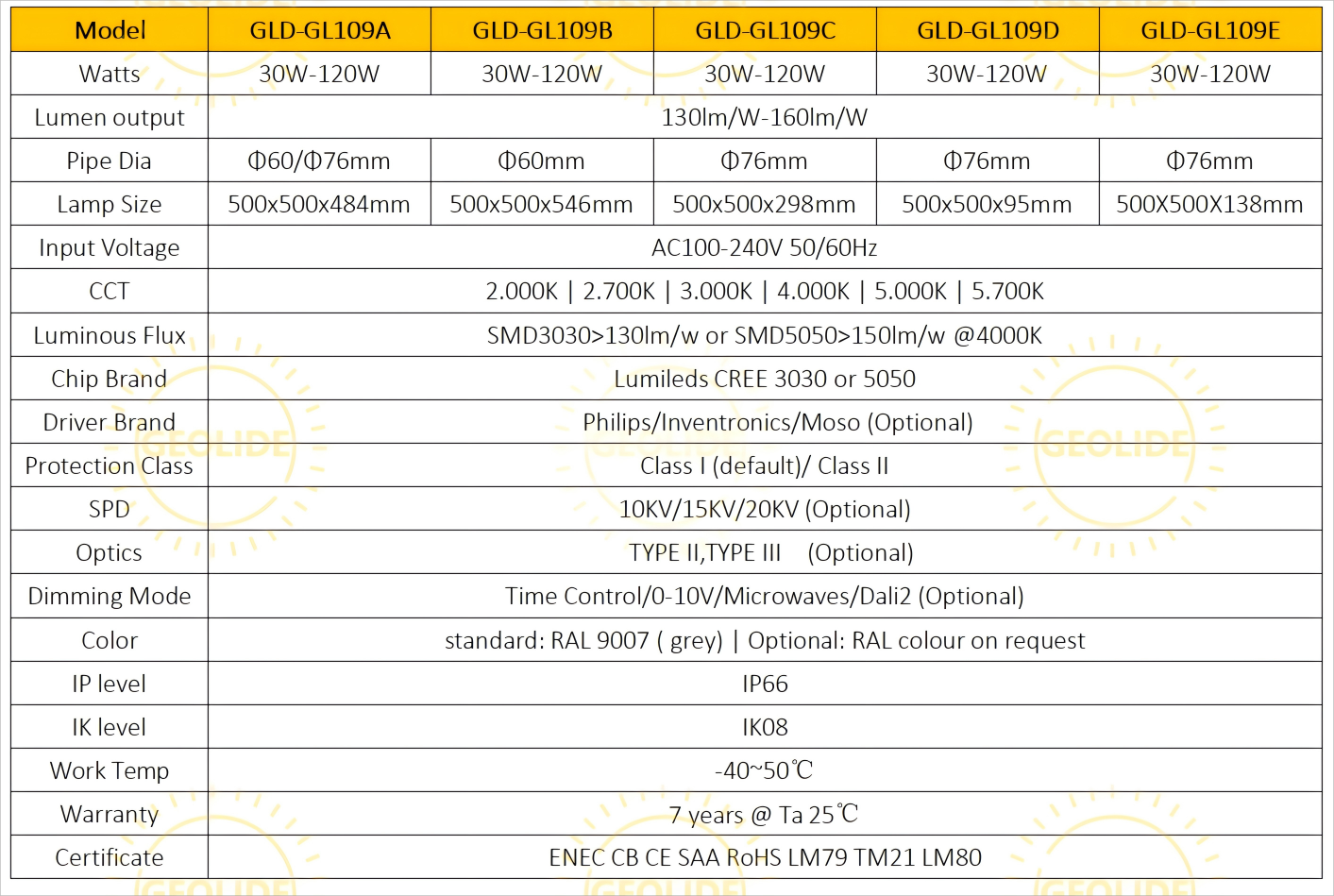

Model |
GLD-GL109 (A.B.C.D.E) |
|
Light Source |
Integral LED Module |
|
Power |
40W/60W/80W/100W/120W |
|
Led Chips |
SMD3030 108pcs/144pcs SMD5050 54pcs/72pcs |
|
Install tube Dia |
D76MM |
|
Luminaire Efficacy |
110-150lm/W |
|
CCT |
4000K (3000K/5000K/5700K upon request) |
|
CRI |
> 70/ > 80 (upon request) |
|
Voltage |
AC100-240V |
|
Lifetime |
100,000 hours at 25℃ ambient temperature |
|
Beam angle |
T2-M (65*155), T3-M (65*160) or others Type |
|
Driver |
Philips,Inventronics,Meanwell |
|
Options |
Photocell |
|
Materials |
Housing: ADC12 die-cast aluminum |
|
Spray |
Finished by high-end outdoor epoxy power, resistant corrosion |
|
Color |
Grey/Black/White |
|
Tightness Level |
IP66 |
|
Impact Resistance |
IK09 |
|
Standards & Certifications |
CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21 |
