Model No. |
Power |

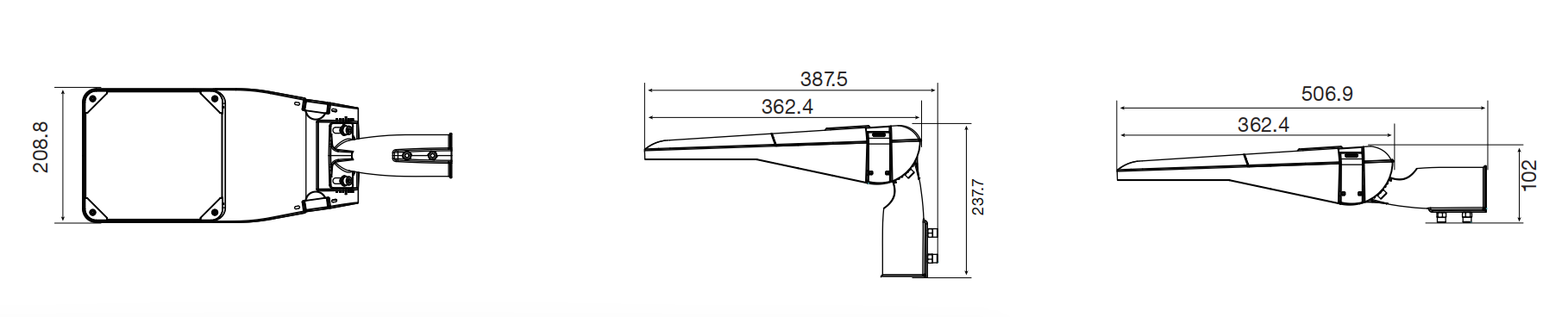

L*W*H(mm) |
IP Level |
Protection Level |
GLD-ST105XS |
30W/50W |
506x208x102 |
IP66 |
IK09 |
GLD-ST105S |
60W/80W |
575x208x118 |
IP66 |
IK09 |
GLD-ST105M |
100W/120W |
623x244x120 |
IP66 |
IK09 |
GLD-ST105L |
150W |
682x244x125 |
IP66 |
IK09 |
GLD-ST116XL |
200W |
732x298x120 |
IP66 |
IK09 |
GLD-ST116XXL |
240W |
765x300x106 |
IP66 |
IK09 |
GLD-ST116XXXL |
320W |
858x333x141 |
IP66 |
IK09 |

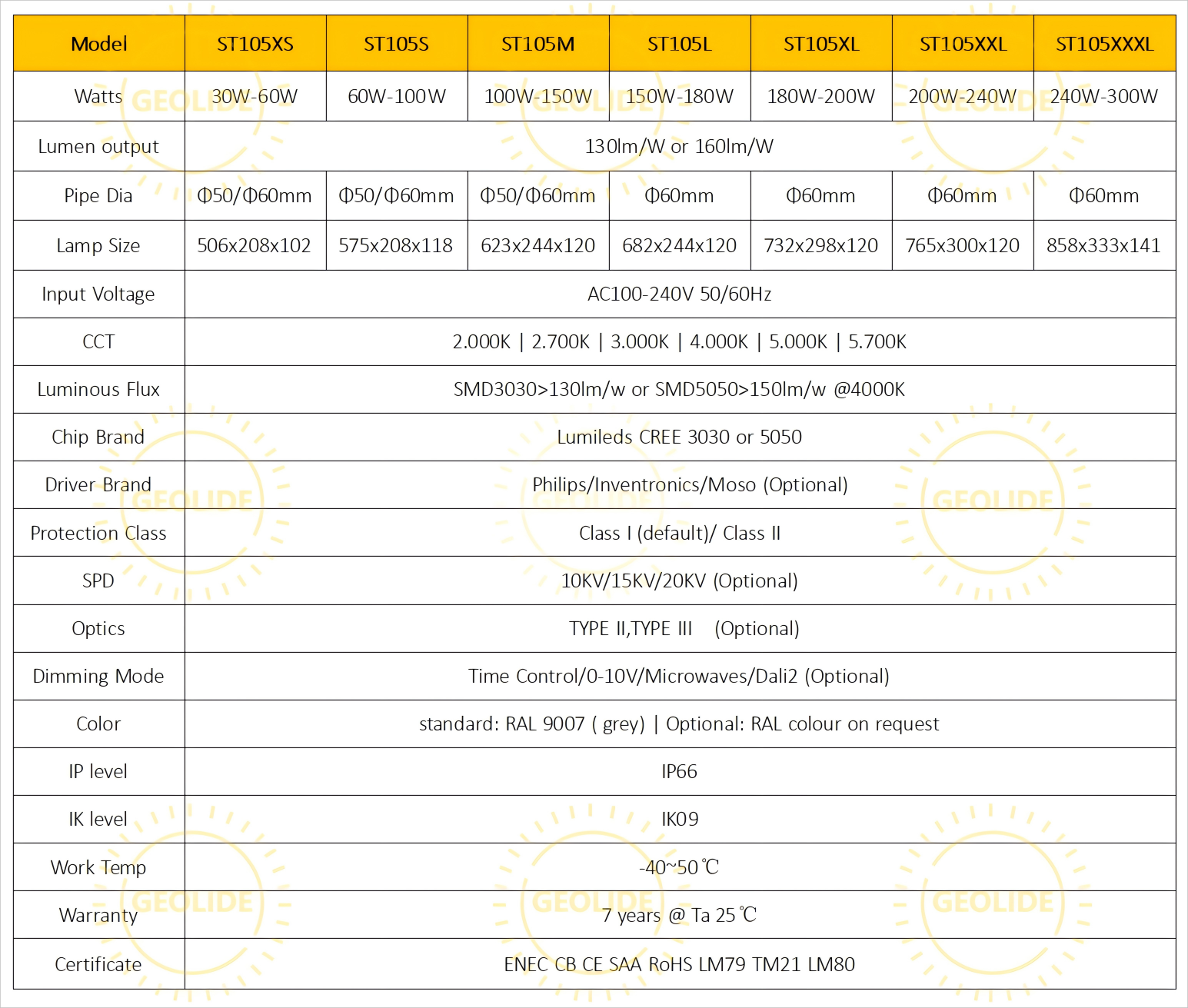

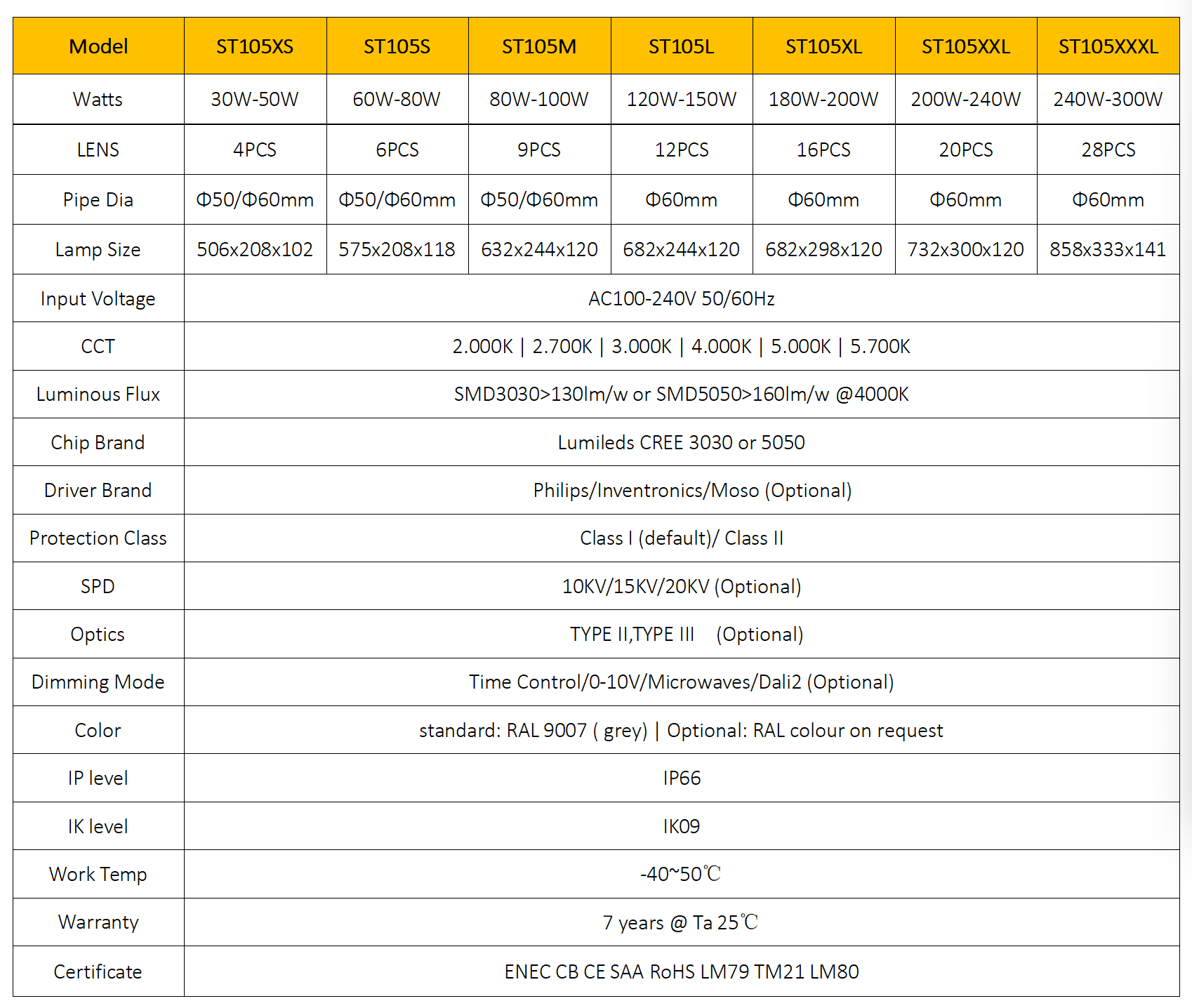

Model |

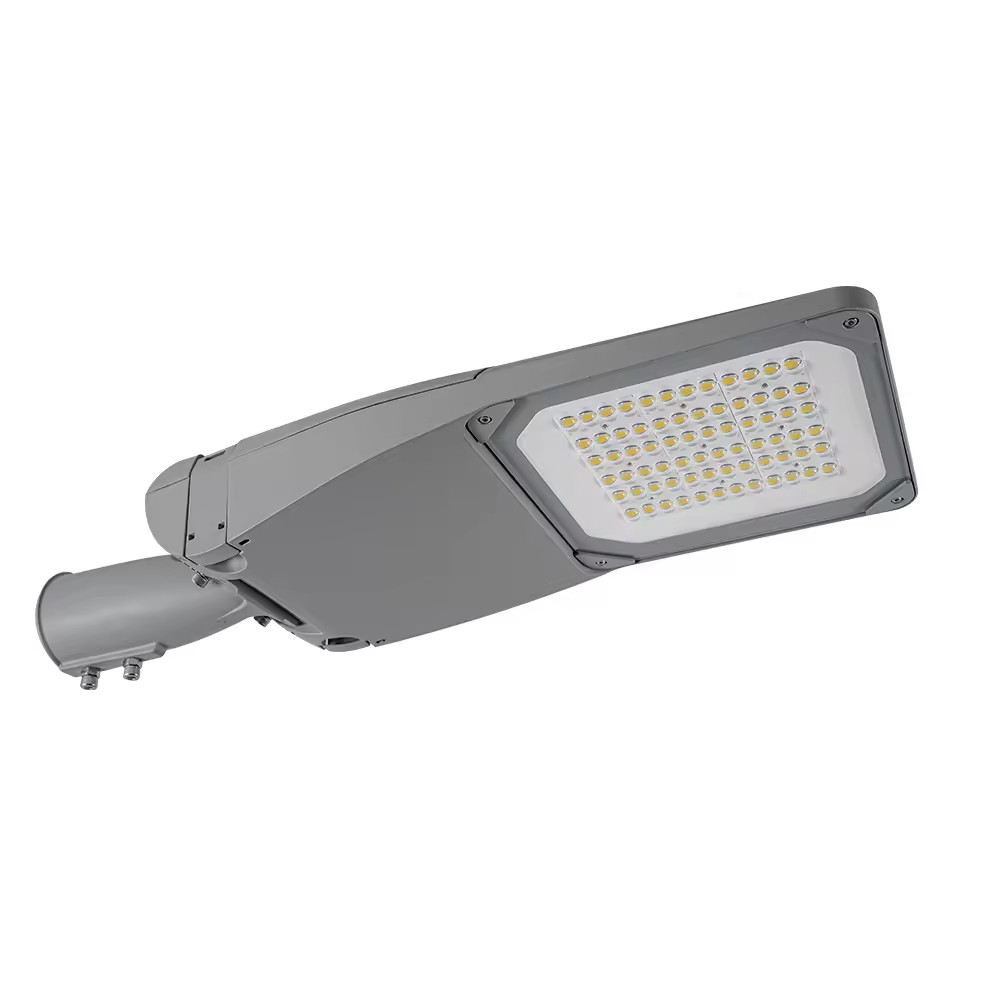

GLD-ST105 |
Light Source |
Integral LED Module |
Power |
30W/50W/80W/100W/150W/180W/200W/240W/320W |
Led Chips |
SMD3030/SMD5050 |
Install tube Dia |
D50/D60MM |
Luminaire Efficacy |
130-170lm/W |
CCT |
4000K (3000K/5000K/5700K upon request) |
CRI |
> 70/ > 80 (upon request) |
Voltage |
AC100-240V |
Lifetime |
100,000 hours at 25℃ ambient temperature |
Beam angle |
TYPE Ⅱ、Ⅲ |
Driver |
Philips、SOSEN、INVENR、Geolide |
Options |
Photocell |
Materials |
Housing: ADC12 die-cast aluminum |
Spray |
Finished with high-end outdoor epoxy power, resistant corrosion |
Color |
Grey/Black/White |
Tightness Level |
IP66 |
Impact Resistance |
IK09 |
Standards & Certifications |
CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21 |
Ningbo Geolide Illuminate Co., Limited is a professional suppliers, we custom ST105 30W-320W CE Led Street Light factory price china supply private mold when we were found in 2010 as a stock company, we focus on development, production, marketing of die casting LED street light housing, Led light housing,Led Street Light, Led Garden Light, Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.
